End Prep Beveling

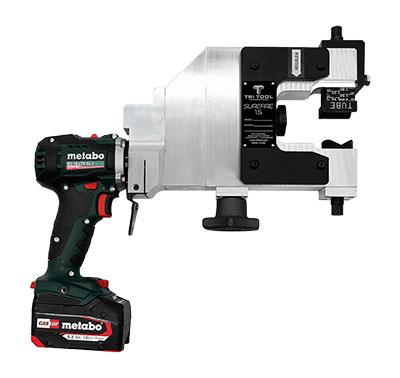

SuperFire 1.5
Faces, Bevels pipe and tube

  • Pipe/Tube Size: *.250" - 2.000"
                                    (*6.4 mm - 50.8 mm)
  • Wall Thickness: **0.400" (10.2 mm) max
  • Drive Options  : Air / Cordless 18VDC with 110
                                    Battery Charger

Learn More

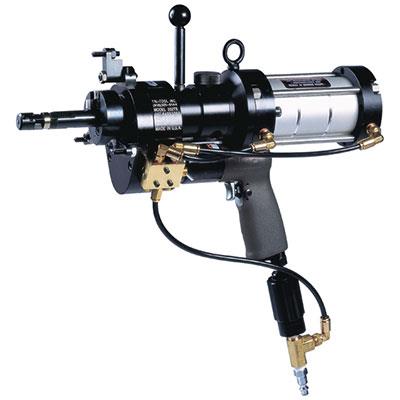

202TS
Faces, Squares, ID Chamfers end
of heat exchanger tubing and
tube sheets

Pipe/Tube Size: *.500" - 2.000"
                               (*12.7 mm - 50.8 mm)
Wall Thickness: **0.187" (4.8 mm) max
Drive Options : Air
Learn More

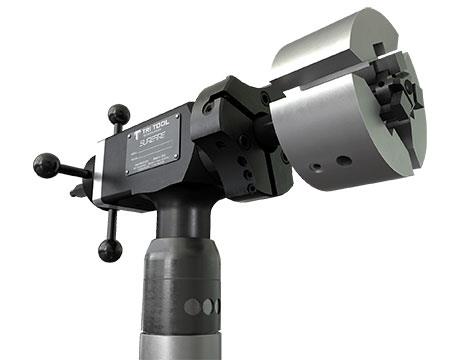

SureFire 4
Faces and bevels thin wall pipe and tube

Pipe/Tube Size: *2" thru 4" pipe, SCH 5 and 10
Wall Thickness: **0.120" (3.0 mm) max
Drive Options  : 110V Electric
                                220V Electric
Learn More

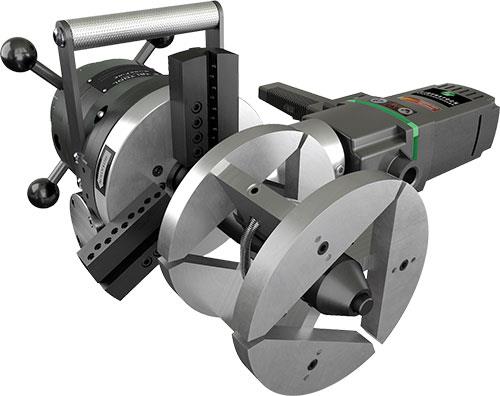

SureFire 8
Faces and bevels thin wall pipe and tube

Pipe/Tube Size: *3" thru 8" pipe, SCH 5 and SCH 10
Wall Thickness: **0.148" (3.8 mm) max
Drive Options  : Air
                               115V Electric
                               230V Electric
Learn More

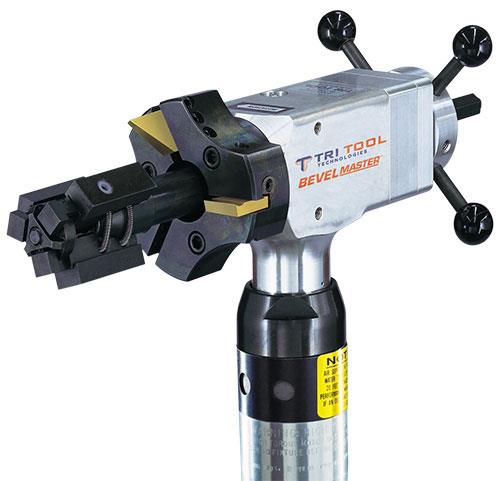

204B
Faces, counterbores, bevels pipe and tube

Pipe/Tube Size: *.610" - 4.500"
                          (*15.5 mm - 114.3 mm)
Wall Thickness: **0.531" (13.5 mm) max
Drive Options  :  Air
                          110V Electric
                          220V Electric
Learn More

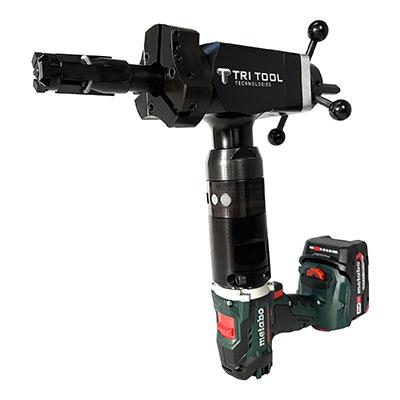

204B-DC
Faces, counterbores, bevel pipe and tube

Pipe/Tube Size: *.610" - 4.500"
                          (*15.5 mm - 114.3 mm)
Wall Thickness: **0.531" (13.5 mm) max
Drive Options  : Cordless 18VDC with 110V / 220V
                          Battery Charger

Learn More

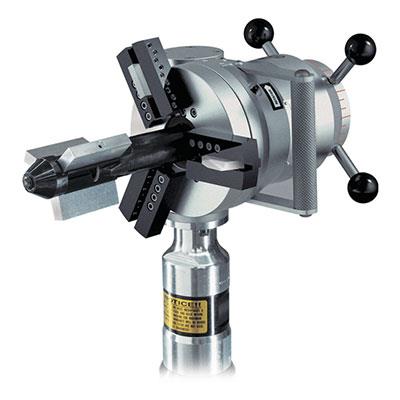

208B
Faces, counterbores, bevels pipe and tube

Pipe/Tube Size: *1.503" - 8.625"
                                (*38.1 mm - 219.0 mm)
Wall Thickness: **0.875" (22.2 mm) max
Drive Options  : Air
                110V Electric
                220V Electric & Hydraulic
Learn More

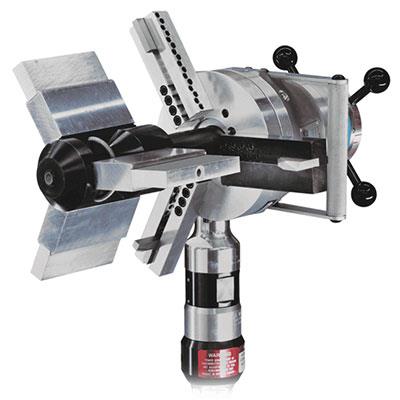

214B
Faces, counterbores, bevels pipe and tube

Pipe/Tube Size: 3.310" - 14.000"
                                (84.0 mm - 355.6 mm)
Wall Thickness: **1.406" (35.7 mm) max
Drive Options  : Air
                110V Electric
                220V Electric & Hydraulic
Learn More

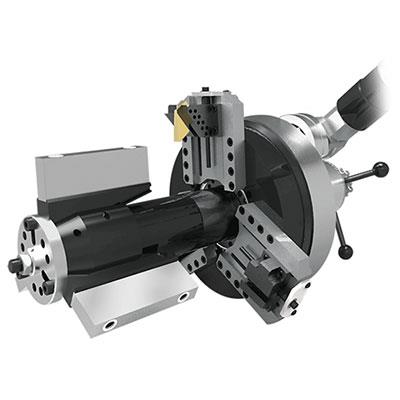

216B
Faces, counterbores, bevels pipe and tube

Pipe/Tube Size:     5.170" - *32.000"
              (131.3 mm - *812.8 mm)
Wall Thickness:    **1.500" (38.1 mm) max
Drive Options :        Air
                                Hydraulic

Learn More

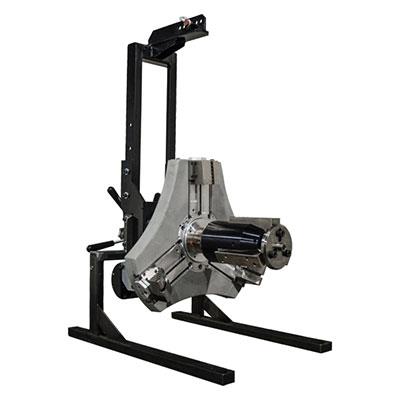

224B
Faces, counterbores, bevels pipe and tube

Pipe/Tube Size: 6.813" - *42.000"
                          (173.0 mm - *1066.8 mm)
Wall Thickness: **2.340" (59.4 mm) max
Drive Options  : Air
                          Hydraulic
Learn More

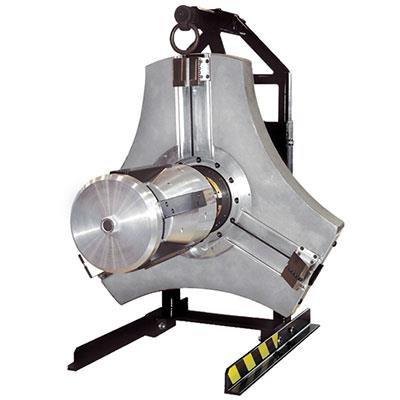

236B
Faces, counterbores, bevel pipe and tube

Pipe/Tube Size: 11.433" - *60.000"
                                (290.4 mm - *1524.0 mm)
Wall Thickness: **1.312" (33.3 mm) max
Drive Options  : Hydraulic
Learn More

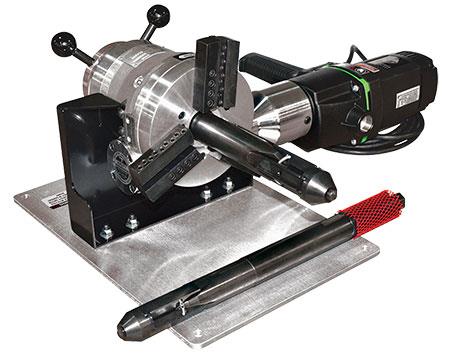

CouponMaster
Faces, counterbores, bevel pipe and tube for weld coupons

Pipe/Tube Size: *1.503" - 8.625"
                          (*38.1 mm - 219.0 mm)
Wall Thickness: **0.875" (22.2 mm) max
Drive Options : Air
        110V Electric
        220V Electric & Hydraulic
Learn More

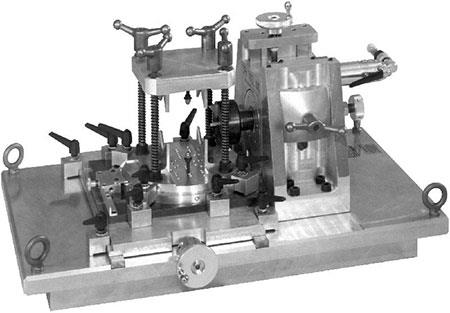

536 Fitting Machine
Faces, counterbores, bevels fittings, elbows, and tees

Pipe/Tube Size: 1.315" - 6.625"
                          (33.4 mm - 168.3 mm)
Wall Thickness: 0.562" (14.3 mm)
Drive Options  : Air
Learn More
