Cutting and Beveling

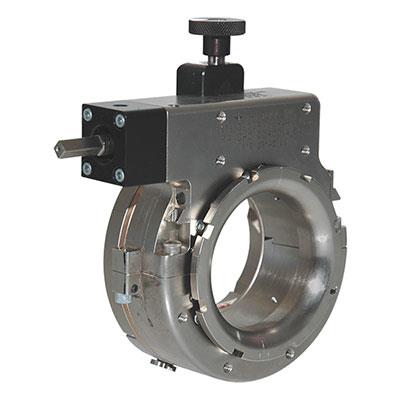

601SBCM
Low profile, split frame lathes
serving and beveling of in line pipe

Pipe/Tube Size:   ***.405" - 1.315"
                            (10.3 mm - 33.4 mm)
Wall Thickness:   **0.250" (6.4 mm)
Drive Options  :   Air / 18V Cordless
Learn More

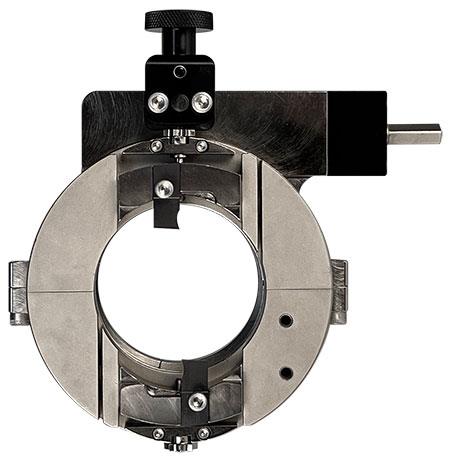

602SBCM
Low profile, split-frame lathes
severing and beveling of in-line
tube and pipe

Pipe/Tube Size: ***1.315" - 2.375"
                          (33.4 mm - 60.3 mm)
Wall Thickness: **0.250" (6.4 mm)
Drive Options : Air / 18V Electric, Cordless
Learn More
603SBCM
Low profile, split-frame lathes
severing and beveling of in-line
tube and pipe

Pipe/Tube Size: ***1.500" - 3.000"
                          (38.1 mm - 76.2 mm)
Wall Thickness: **0.358" (9.1 mm)
Drive Options  : Air /18V Electric, Cordless

Learn More

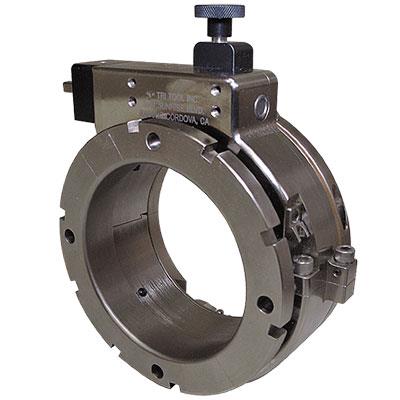

603.5SBCM
Low profile, split-frame lathes
severing and beveling of in-line
tube and pipe

Pipe/Tube Size: ***2.875" - 4.000"
                          (73.0 mm - 101.6 mm)
Wall Thickness: **0.358" (9.1 mm)
Drive Options : Air/18V Electric, Cordless

Learn More

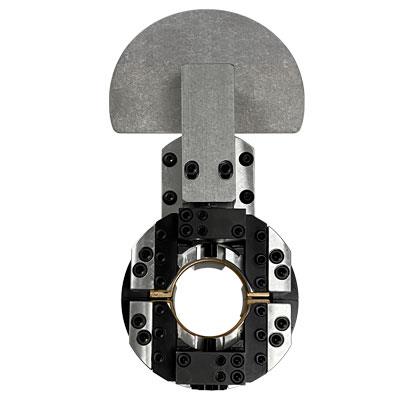

602TSB
Low profile, split-frame lathes
severing and beveling of in-line
tube and pipe

Pipe/Tube Size: ***1.500" - 2.000"
                          (38.1mm - 50.8mm)
Wall Thickness: **.800 (20.3 mm)
Drive Options  : Air

Learn More

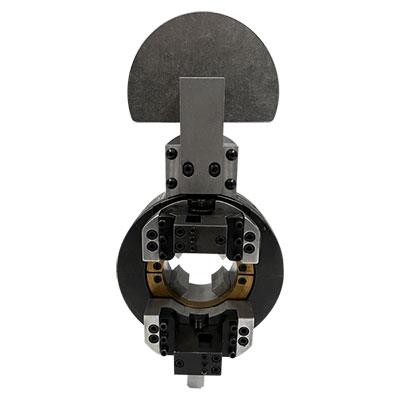

602.5SBM
Low profile, split-frame lathes
severing and beveling of in-line
tube and pipe

Pipe/Tube Size: ***1.315" - 3.000"
                          (33.4 mm - 76.2 mm)
Wall Thickness: **1.250" (31.8 mm)
Drive Options  : Air/110V Electric

Learn More

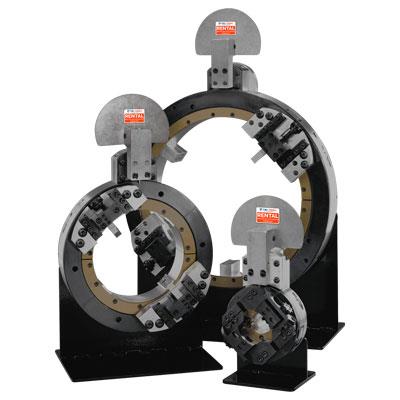

604SB
Low profile, split-frame lathes severing and
beveling of in-line tube and pipe

Pipe/Tube Size:***2.375" - 4.500"
                         (60.3 mm - 114.3 mm)
Wall Thickness: **.800 (20.3 mm)
Drive Options : Air/110V Electric / 115V HD Electric
                         220V Electric / Hydraulic/Servo

Learn More
606SB
Low profile,split-frame lathes
severing and beveling of in-line tube

Pipe/Tube Size: ***2.375" - 6.625"
                          (60.3 mm - 168.3 mm)
Wall Thickness: **1.500" (38.1 mm)
Drive Options  : Air/110V Electric / 115V HD Electric
                         220V Electric / Hydraulic/Servo

Learn More

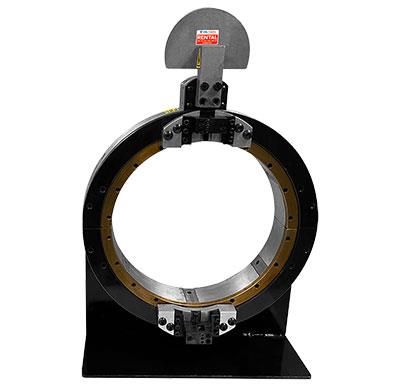

608SB
Low profile, split-frame lathes
severing and beveling of in-line tube

Pipe/Tube Size: ***4.500" - 8.625"
                          (114.3 mm - 219.1 mm)
Wall Thickness: **1.500 " (38.1 mm)
Drive Options : Air/110V Electric / 115V Electric
                        220V Electric / Hydraulic/Servo
Learn More
610SB
Low profile,split-frame lathes
severing and beveling of in-line tube

Pipe/Tube Size: ***6.625" - 10.750"
                          (168.3 mm - 273.0 mm)
Wall Thickness: **1.50" (38.1 mm)
Drive Options : Air/110V Electric / 115V Electric
                        220V Electric / Hydraulic/Servo

Learn More

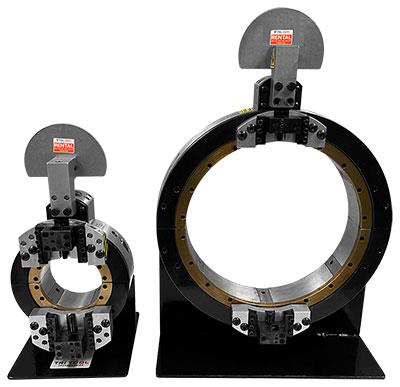

612SB
Low profile,split-frame lathes
severing and beveling of in-line tube

Pipe/Tube Size: ***8.625" - 12.750"
                          (219.1 mm - 323.9 mm)
Wall Thickness: **1.500" (38.1 mm)
Drive Options : Air/115V Electric
                         220V Electric / Hydraulic/Servo
Learn More
614RBL-G2
Low profile,split-frame lathes
severing and beveling of in-line tube

Pipe/Tube Size: ***7.000" - 14.000"
                          (177.8 mm - 355.6 mm)
Wall Thickness: **2.500" (63.5 mm)
Drive Options  : Air/115V HD Electric
                          220V Electric / Hydraulic/Servo

Learn More
616RBL-G2
Low profile,split-frame lathes
severing and beveling of in-line tube

Pipe/Tube Size: ***10.750" - 16.000"
                          (273.1 mm - 406.4 mm)
Wall Thickness: **2.500" (63.5 mm)
Drive Options : Air/115V HD Electric
                        220V Electric / Hydraulic/Servo
Learn More
620RBL-G2
Low profile, split-frame lathes
severing and beveling of in-line tube

Pipe/Tube Size: ***14.000" - 20.000"
                         (355.6 mm - 508.0 mm)
Wall Thickness: **2.50" (63.5 mm)
Drive Options : Air/115V HD Electric
                         220V Electric / Hydraulic/Servo

Learn More
624RBL-G2
Low profile, split-frame lathes
severing and beveling of in-line tube

Pipe/Tube Size: ***18.000" - 24.000"
                          (457.2 mm - 609.6 mm)
Wall Thickness: **2.500" (63.5 mm)
Drive Options : Air/115V HD Electric
                        220V Electric / Hydraulic/Servo
Learn More
630RBL-G2
Low profile,split-frame lathes
severing and beveling of in-line tube

Pipe/Tube Size: ***24.000" - 30.000"
                          (609.6 mm - 762.0 mm)
Wall Thickness: **2.500" (63.5 mm)
Drive Options  : Air/115V HD Electric
                          220V Electric / Hydraulic/Servo

Learn More
636RBL-G2
Low profile,split-frame lathes
severing and beveling of in-line tube

Pipe/Tube Size: ***30.000" - 36.000"
                          (762.0 mm - 914.4 mm)
Wall Thickness: **2.500" (63.5 mm)
Drive Options  : Air/115V HD Electric
                         220V Electric / Hydraulic/Servo
Learn More
642RBL-G2
Low profile,split-frame lathes
severing and beveling of in-line tube

Pipe/Tube Size: ***36.000" - 42.000"
                          (914.4 mm - 1066.8 mm)
Wall Thickness: **2.500" (63.5 mm)
Drive Options : Air/115V HD Electric
                         220V Electric / Hydraulic/Servo

Learn More

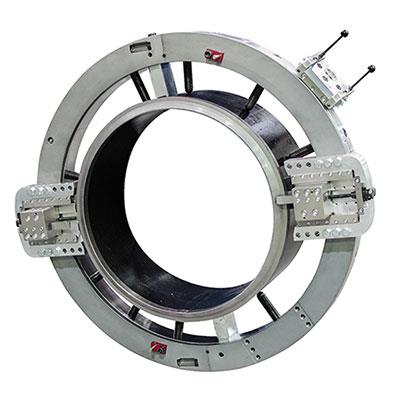

648RBL
Split-frame lathes severing and
beveling of in-line tube

Pipe/Tube Size: 42.000" - 48.000"
                          (1066.8 mm - 1219.2 mm)
Wall Thickness: **2.500" (63.5 mm)
Drive Options  : Air / Hydraulic

Learn More
660RBL
Split-frame lathes severing and
beveling of in-line tube

Pipe/Tube Size: ***54.000" - 60.000"
                          (1371.6 mm - 1524.0 mm)
Wall Thickness: **4.630" (117.8 mm)
Drive Options  : Hydraulic

Learn More
